Purpose of the article: This blog explains how to perform basic unit testing on a dimension table by following Slowly Changing Dimension Type 2
Intended Audience: This blog will help you understand the concept of Slowly Changing Dimensions, the difference between OLTP and OLAP, the concept of dimension tables, dimensional attributes, and how to perform unit testing on a dimension table
Tools and Technology: Python and Snowflake
This framework connects to Snowflake and performs unit testing on the attributes of a dimension table.
- Setup and Requirements
-
- Tools and Libraries:
- Python: For scripting and test automation.
- Snowflake Connector for Python: To connect to Snowflake from Python.
- Tools and Libraries:
-
- Installation:
- Install the required libraries using pip:pip install snowflake-connector-python
- Installation:
- Configuration
-
- Snowflake Connection Configuration:
- Create a configuration file to store Snowflake connection details.
- Snowflake Connection Configuration:
-
- Snowflake Connection Script:
- Create a Python script (snowflake_connection.py) to manage the connection.
- Snowflake Connection Script:
- Test Case Design
-
- Define Test Cases:
- Outline the test cases for the dimension table.
- Define Test Cases:
-
- Test Case Script:
- Create a script to run the test cases (dim_common_sqls.sql).
- Test Case Script:
- Execution
-
- Run Tests:
- Execute the test cases.
- Run Tests:
-
- Output:
- The process creates an SQL file and an Excel sheet in the specified folder and sends an email notification.
- Output:
Description:
Before sending any dimension table to QA, it is important to ensure that all dimension tables adhere to a set of general properties and standards. This applies to any dimension table created by a developer when loading data from the source to the target.
To understand these general properties, we first need to grasp how dimension tables are designed. Typically, dimension tables include a Surrogate Key, which serves as the primary key for the them. Additionally, there is a Natural Key that acts as the primary key in the transaction table, but it is not the primary key in the dimension table. For example, in a dimension table such as an Employee (Emp) table, attributes might include Employee Name and Phone Number.
| Emp ID | name | phone | surrogate |
| 100 | ABCD | 1234567890 | 1000 |
| 100 | ABCD | 1234567890 | 1000 |
In this scenario, the employee’s primary key will remain unchanged, but the Surrogate Key, which serves as the primary key for the dimension table, will be updated if there are any changes in the data.
Slowly Changing Dimensions (SCD)
When designing a dimension table, there are several types of Slowly Changing Dimensions (SCD):

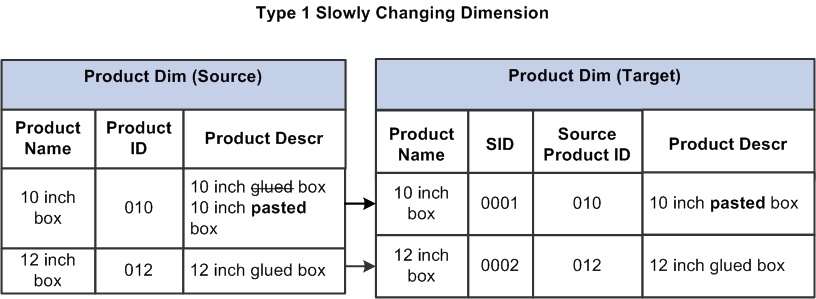

Type 1
If a field, such as Product Description, is changed, it is updated directly in the dimension table. Generally, this approach is not recommended, as it does not preserve historical data.

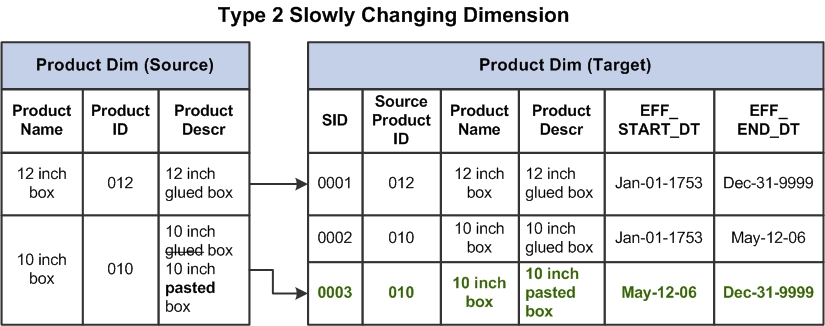

Type 2– This method inserts a new row for each new value while preserving the existing row to maintain historical data and support reporting purposes.
A Type 3 –
This method creates a Current Value column in the existing record while retaining the original column, holding new dimension data from the transaction (OLTP) system. It is used to track changes in dimension values while keeping the old value for reporting.
Typically, SCD Type 2 is preferred, retaining both previous and current records and adding attributes like Dim Active Indicator, Latest Row Indicator, Effective Timestamp, and Expiry Timestamp.
In this context, we are focusing on Slowly Changing Dimension (SCD) Type 2 and have designed our test cases accordingly. All test cases will focus on the Surrogate Key, Primary Key, Dim Active Indicator, Latest Row Indicator, Effective Timestamp, and Expiry Timestamp.
Based on these properties, we have designed a few test cases on dimensional properties. These test cases are focused solely on the dimensional properties of the table and do not address the functional properties.
STEPS:
Dimensional Automation Testing Framework: This directory includes various packages.
Config File: Contains configuration details.
Connection.ini: This file contains configuration settings for establishing a connection to Snowflake.
user = ********
password = *********
account = *************
Input.json
{
"sf_connection": {
"env": "DEV"
},
"target": {
"layer": "EMP",|
"table_type": "DIM",
"schema": "PUBLIC",
"table_name": "EMPLOYEE_DIM",
"pk_columns": [
"EMPLOYEE_NUMBER"
],
"as_of_dt": "EFFECTIVE_TS"
},
"op": {
"send_mail_to": "divyav.in@mouritech.com",
"op_folder": "C:\\Users\\divyav\\OneDrive MOURI Tech\\Desktop\\snowflake"
}
}
- DB Conn— Establishing a connection to Snowflake using a connection.ini file located in the Config folder.
IO— Includes All Initializations, Input Files, and Output Files
Init.py: This file contains all initializations, including:
Table Name
Schema Name
Database Name
Primary Key Columns
As Of Date Columns
Recipient Mail
Output Folder
Op_sheet.py: defining and designing the output sheet
Creating a sheet
Defining the sheet with title and content
Saving the sheet and the SQL file
Read_input_data.py: This process involves reading all input data, such as input.Json and dim_common_sqls.sql, to run the test cases.
Send_validation_mail: Sends email to the recipient mentioned in the input.Json file
SQLs—All SQL queries written in a file
Dim_common_sqls.sql
Test Cases—test case details
dim_test_cases: passing column names to an SQL file
test_case_run: run the Test cases and generate the output sheet.
Validations— This process performs various validations on the table, such as checking whether it is a dimension table. It acts as a gateway from the main process to the Dim Test Cases.
Main— from where the prog starts.
if __name__ == '__main__':
validate_test_cases.run_test_cases()
Conclusion:
By following this approach, you will set up an automation testing framework in Python that connects to the Snowflake and performs unit testing on all the attributes of the dimension tables.
